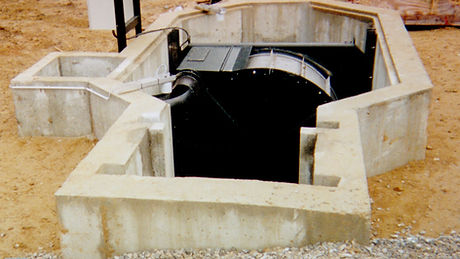

PLATE-SUPPORTED DRUM SCREENS

PURPOSE AND APPLICATIONS

This plate-mounted, self-supporting drum screen is used to screen small or medium flows of water for industrial or water-treatment plants It is a fully standardised design and is not designed to be customized. It is meant for sites with little or no water level variations.



DESCRIPTION

Two layouts are possible:

  1. The drum is mounted on a wall-plate which is slid into guides on each side of the shallow water channel. The water flows around the drum through the mesh and on through the water plate center aperture. For more details, refer to the outside-to-inside flow pattern drum screen.


  2. The drum is mounted on a wall-plate which is slid into guides on each side of the shallow water channel. The water flows through the water plate center aperture then into the drum screen through the mesh. It exits below and on either side of the drum screen. For more details, refer to the inside-to-outside flow pattern drum screen.

ADVANTAGES

  • It has all the advantages of other drum screens

  • Easy installation

  • Removable for maintenance purposes

  • Standardised product

SIZES

  • It exists in three standard width sizes or more upon special request

  • Diameters from 1.5 m.



OPTIONAL FEATURES



NECESSARY ANCILLARIES



MATERIALS

  • For fresh-water applications: AISI 304L stainless steel

  • For seawater applications: AISI 316L stainless steel, duplex or super-duplex stainless steel
